BendPak Four-Post Lifts for Storage and Maintenance
A BendPak four-post lift uses the best construction, material and technology. It also has the best safety features in the industry. Favoured by professionals and DIY'ers alike, our four-post lifts are some of the most versatile in existence. They're totally optimised for greater capacity and better performance, improving safety and control during use. They also feature advanced hydraulic systems for better productivity and a longer lifespan. This is even true when used for the most demanding, heavy-duty applications.
3,175-kg. Capacity / Wide Car Lift / High Rise
BendPak's HD-7W is the standard-width car lift model in the HD-7 series. With a 2,800 mm overall width and a spacious 2,546 mm spread between the columns, there’s plenty of room to park most cars and trucks in the lower position. This leaves ample space for you to maneuver.
3,175-kg. Capacity Super-Tall Four-Post Lift / Vehicle Display Platform
The HD-7PXW is a literal giant. This four-post lift is also a magnificent display platform that will effortlessly lift up to 3,175 kg. over 3.65 m into the air! Specially made for dealers, it's perfect for stacking taller vehicles and getting them seen!
GP-9XLT Package (5175257)
4,082-kg. Capacity / High Lift / Extended Length / Includes Aluminum Ramps, Caster Kit, Jack Platform and Drip Trays
The GrandPrix GP-9XLT is a four-post lift that's 609 mm longer and 304 mm taller than the standard-length GP-9F model. Perfect for parking high-stance and/or longer-wheelbase vehicles underneath.
4,082-kg. Capacity / Four-Post Lift / Standard Width
The HD-9 series of 4,082-kg. four-post lifts contains seven different lifting models. Each four-post lift is perfect for vehicle storage and service, whether you’re working at the shop or your home garage. Each model is available with optional casters, drip trays, jack platforms and more.
4,082-kg. Capacity / Four-Post Lift / Standard Width / Extended Length
The HD-9XL is the ideal 4,082-kg. capacity four-post lift for vehicles with longer wheelbases. In fact, the runways are about two feet longer than the runways on the standard HD-9. This 4-post lift variety is available with optional casters, dip-trays, jack platform and more.
4,082-kg. Capacity / Four-Post Lift / Dual Platform / Super Wide / Extended-Length
HD-9SWX is ideal for anyone who wants a little extra standing room under their lift. Plus, the runways are 609 mm longer than our standard-length HD-SW. Park up to four cars, trucks and SUVs, and enjoy servicing two raised vehicles in a single lift.
6,350-kg. Capacity / Four-Post Lift / Tall Lift / 2,083 mm Rise
The industrial-quality HD-14T is a full-sized lifting force designed specifically for parking higher-profile vehicles beneath the raised platform. With this four-post lift, you can push 6,350-kg. worth of automobile into the air without breaking a sweat.
6,350-kg. Capacity / Four-Post Lift / Standard Length
BendPak's HDS-14 four-post lift is a whole new breed of rugged. It features superior components that work better, are built to last and increase operator safety. If your service bay needs to get under heavy-duty, oversized vehicles on a daily basis, this lift is what you need.
6,350-kg. Capacity / Four-Post Lift / Extended / Limo Style
The "limo style" HDS14X hoist is useful for vehicles that make use of its 5,817 mm runways. Limousines, as well heavy-duty SUVs and trucks, need the extra length, and that’s where this heavy-duty four-post lift comes in handy.

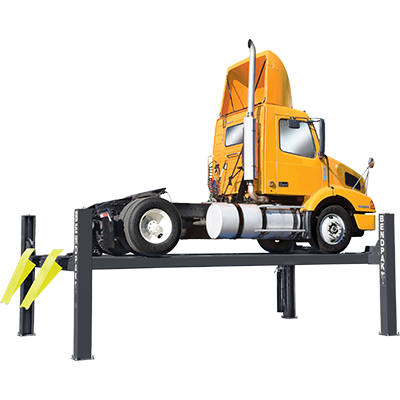

12,247-kg. Capacity / Four-Post Lift / Standard
If you need a bigger, better four-post lift that can handle a 12,247-kg., Class 7 semi-truck, you need the HDS-27. Bigger sheaves and beefier components carry on our legacy of dependability. If your shop services commercial and/or municipal vehicles, this lift is practically mandatory.
12,247-kg. Capacity / Four-Post Lift / Extended
With 8,204 mm runways, the HDS-27X is the first extended-length model in BendPak's super-duty four-post series. As a super-long lift that holds up to 12,247-kg., this incredibly versatile lift accommodates massive Class 7 semi-trucks. There isn't much this lift can't handle.
18,144-kg. Capacity / Four-Post Lift / Standard
The HDS-40 four-post lift is the safest, beefiest, biggest, baddest, meanest and every other “-est” word for a truck lift we can use to mean, “It doesn’t get better than this.” This extreme heavy-duty four-post lift can support the weight of a Greyhound™ bus, as well as a mobile home or RV.
18,144-kg. Capacity / Four-Post Lift / Extended
The HDS-40X is BendPak's heaviest-duty, extended-length truck lift. That makes it the most powerful offering in our arsenal. A rugged design with safety features unmatched in the industry, anyone working on massive commercial vehicles should consider this mighty machine.
Which four-post lift is best for my shop?
Ever since our high-capacity four-post lifts hit the market in 1984, the BendPak logo has inspired confidence in service professionals worldwide. These are people who spend much of their lives beneath vehicles lifted with our equipment. Of course, much has changed in the way of technology since the early days of BendPak. What hasn't changed is our commitment to the end-user and the care we put into each four-post lift.
BendPak lifts are engineered to meet the demands of any lifting job. Lift capacity ranges from light-duty 3,175 kg to heavy-duty 18,143 kg. If it drives, one of our four-post lifts can probably handle it. These automotive lifts also pull double-duty as convenient parking and storage solutions. Securely leave your weekend car raised on the lift and easily park your day-to-day ride beneath it. Many of our four-post lift models let you choose between several options: super-tall, wide, narrow, space-saving or regular. You're sure to find the perfect four-post lift for your needs.
All BendPak lifts are backed by 50 years of excellence and a reputation that carries as much weight as the lift itself. We're proud to have these four-post car lifts in our lineup, and you will be too. A suite of accessories and options are available, including jacking beams for full wheel service.
BendPak lifts are supplied with installation instructions and concrete fasteners meeting the criteria as prescribed by the American National Standard "Automotive Lifts - Safety Requirements for Construction, Testing, and Validation" ANSI/ALI ALCTV-2017. Lift buyers are responsible for any special regional structural and/or seismic anchoring requirements specified by any other agencies and/or codes such as the Uniform Building Code (UBC) and/or International Building Code (IBC).
A single, hidden hydraulic cylinder on every BendPak four-post lift
Part of what makes our four-post car lifts as sleek as they are efficient is the way we hide components that would otherwise disrupt the look of the lift. To keep the hydraulic cylinder hidden, we tucked it beneath one of the drive-on ramps. This leak-proof cylinder technology is only available for BendPak four-post lifts.
Each car lift is equipped with a single hydraulic cylinder hidden away under the runway for minimum exposure and maximum reliable performance. Our industrial-grade hydraulic cylinders feature a single-piece, pilot-fitted, machined steel piston wrapped with specially-designed, pressure-loaded U-cup piston seals, backups and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .25 mm diametrically, which ensures superior cylinder operation and life. The superior, high-durometer, mechanically-loaded rod seals make rod leakage a thing of the past, while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth and last an exceptionally long time. An integrated flow restrictor provides a controlled descent in the case of unexpected hose rupture.
