Rolling bridge jacks by BendPak

RJ9W

SKU# 5175252

4,082-kg. Capacity / Rolling Bridge Jack


BendPak’s 4,082-kg. capacity rolling bridge jack is ideal for use on the HDS-18E four-post lift, especially if your vehicles have an unbalanced center of gravity. This jack is ideal for heavier trucks and SUVs.

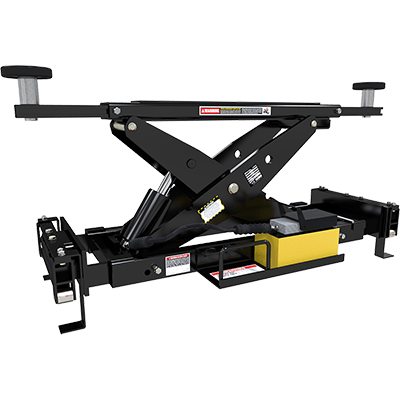

Rolling bridge jack for a Four-Post Lift RJ9W by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

Lift 4,082-kg. for Full Wheel Service Capability

With a ​6,350-kg. capacity ​lift, you might think the RJ7W rolling bridge jack is sufficient for your vehicle. However, vehicles that max out a lift's capacity might have offset centers of gravity. In such cases, the RJ7W is not suitable to lift those vehicles. That’s why we offer the RJ9W. A heavier-duty jacking beam can save you from having to swap your perfectly fine four-post lift for a heavier-duty model.

Rubber contact pads

Rubber contact pads are essential lifting components. They increase rise and firmly engage your vehicle’s undercarriage lift points. The durable yet non-marring surface ensures vehicles are not scraped or damaged during ​jacking beam or car lift operation.

Stackable adapters

The ability to stack and unstack BendPak contact pads increases the versatility of your ​jacking beam. These adapters are also useful for lifting vehicles that may have drastically different front-and-rear suspensions. With two jacking beams employed at once, the front may need an extra adapter to ensure an even lift.

High-pressure hydraulic power unit

BendPak’s ​jacking beams include a pneumatic-hydraulic power unit that comes attached to the jack. The car lift runs off its own power unit, so there’s no “sharing” of hydraulic power between the two. An airline must be attached to the rolling bridge jack with 125 psi and 10 – 20 CFM. Easy foot pedal control is included for your safety and convenience.

Three lock levels

With three lock positions, your jacking beam can be raised to the level most comfortable for you. Find the perfect height for the perfect job as you also adjust the height of your car ​lift.

Features

  • 4,082-kg. hoisting capacity
  • Easy-Roll Wheels
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit
RJ9W specs diagram

Capacity

Lifting Capacity*

Rise

A - Max. Height + Pad Only:
B - Max. Height + Pad + Adapter:
C - Min. Height + Pad Only:
D - Min. Height + Pad + Adapter:
Time to Full Rise:

Reach

F - Support Arm Width:
-
G - Max. Arm Reach:
H - Min. Arm Reach:

Power Unit

Motor:
Noise:

Shipping

Weight:
Dimensions:

RJ9W Specifications

Lifting Capacity
9,000 lbs. (4,082 kg)
Suitable Lift Model(s)
HDS-18E, HDS-27 Series

Min. Drive-Over Height*

Pad Only:
5.25" (133 mm)
Pad + 2.75" Adapter:
8" (203 mm)
Pad + 5.5" Adapter:
10.75" (273 mm)

Max. Lifting Height*

Pad Only:
16.25" (413 mm)
Pad + 2.75" Adapter:
19" (483 mm)
Pad + 5.5" Adapter:
21.75" (552 mm)

Reach

Support Base Width:
45" (1,143 mm) - 50" (1,270 mm)
Max. Arm Reach:
56" (1,422 mm)
Min. Arm Reach:
42" (1,067 mm)
Time to Full Rise:
55 seconds
Pump:
Air/Hydraulic
Air Pressure:
125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure:
5,020 PSI
Power Requirement:
None
Shipping Weight:
445 lbs. (202 kg)
Shipping Dimensions:
41.25" x 25" x 15" (1,048 mm x 635 mm x 381 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.

Included commercial-grade air-hydraulic pump requires 125 psi and 10 – 20 CFM.

Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
