Low-Rise Scissor Lifts by BendPak


SKU# 5175731

4,535-kg. Capacity / Low-Rise Scissor Lift

BendPak’s 4,535-kg. capacity LR-5T low-rise scissor lift is your solution for quick service and increased productivity when servicing today’s passenger cars and light trucks. From tire and brake service to vehicle detailing and body repair, a wide variety of vehicles will fit.

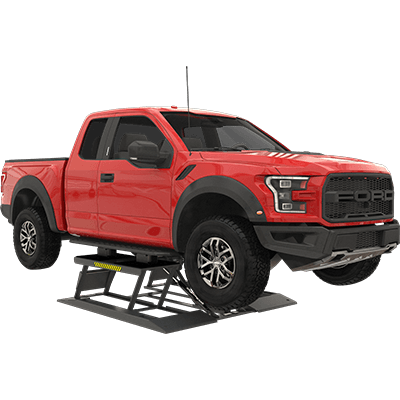

LR-5T Low-Rise Lift with 4,535-kg lift capacity by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

Work Faster with the Top-Selling LR-5T Low-Rise Lift

When you need to get wheel service done quickly, there’s no substitute for the LR-5T. This amazingly efficient low-rise lift holds up to 4,535-kg. It’s perfect for trucks and SUVs that many other hoists can’t handle.

Lug nuts and other small parts are always within reach with the convenient built-in storage trays. A small footprint, easy installation and adaptable 110V/220V power-unit make the LR-5T the perfect lift that fits any shop. The lift platform and auxiliary adapters allow lifting of most unibody and frame contact undercarriages at recommended manufacturer pick-up points on most vehicles.

Be sure to compare your vehicle specifications, including ground clearance and overall height with the specification shown before you purchase.

Low-profile height

A low ​102 mm collapsed height accommodates most vehicles, including sports cars, race cars and larger trucks/SUVs. The minimal garage footprint means you can collapse your car hoist without it getting in your way. This is perfect for home garages that want to reduce clutter in a tight space.

Single-point safety release

The single-point safety release and dead-man style operation controls make this hoist easy to operate and safe to use. The release during descent is instantaneous, smooth and perfectly level.

Dropped crossbar

A specially formed crossbar is dropped in the center, providing added vehicle drive-over clearance. Now suspension work, oil changes, wheel and brake service and detailing are easier than ever.

Rugged steel channel frame

If you're going to do heavy lifting, you need a solid base. BendPak steel is manufactured under the strictest industry standards. The same warranty that applies to our larger lifts applies to our low-rise pad lifts.

Industrial-grade hydraulic cylinder

A durable, leak-proof hydraulic cylinder with flow divider ensures even ascents and descents with every use. This is the same cylinder technology that supports all BendPak hoist designs. In our minds, low-rise pad lifts deserve the same rugged equipment as any other car ​hoist, so we treat them that way.

Solid rubber lift blocks

Others charge extra for these necessary adapters, but they're standard with every low-rise scissor lift purchase you make. There’s no point in having you open your car ​hoist installed without all the pieces needed to operate it, is there? Only use BendPak’s durable treaded rubber lift blocks when operating our low-rise pad lifts. They’re more supportive and longer-lasting than many competing lift blocks. In fact, some companies use dinky rubber padding on their low-rise lifts, which rips and tears during use. Hardly a good idea.


  • Each lift platform features four parallelogram frame support bars making it the strongest 4,535-kg low-rise ​pad lift in its class
  • Drive-over ramps and side rails provide an increased width to support wider vehicles during approach
  • Comes standard with a durable full length rubber-topped lifting platform and eight multi-height rubber topped adapters for increased vehicle contact versatility
  • Storage trays are conveniently placed on each side of the lift platform to prevent wheel lug nuts and other small parts from being misplaced
  • Dual hydraulic cylinders provide a stable 4,535-kg lifting capacity to accommodate a wide range of vehicles
  • Diamond plated approach ramps help to prevent slipping
  • Thee locking positions allow technicians to work at different working heights to increase productivity and minimize fatigue
  • A hands-free safety lock release system is operated away from the ​hoist and allows operators to safely deactivate the locks without the need to push or pull cumbersome release bars or lock release handles
  • Powder coat finish provides a long lasting durable finish
  • Included with every ​hosit are detailed installation and maintenance instructions, graphic safety decals, maintenance decals, vehicle lifting point guide and a safety instruction placard to train personnel on proper safety procedures and maintenance guidelines


LR-5T specs diagram
Lifting Capacity:
4,545 kg (10,000 lbs.)
Max Capacity / Front Axle:
2,273 kg (5,000 lbs.)
Max Capacity / Rear Axle:
2,273 kg (5,000 lbs.)
Lifting Height:
578 mm (22.75”)
Lifting Height + Blocks:
800 mm (31.5")
1st. Lock Position:
381 mm (15")
2nd. Lock Position:
476 mm (18.75")
3rd. Lock Position:
461 mm (21.5")
4th. Lock Position:
578 mm (22.75”)
Overall Pad Length:
1,346 mm (53”)
Overall Length:
2,094 mm (82.65")
Overall Pad Width:
610 mm (24")
Overall Width:
2,159 mm (85")
Lowered Height:
102 mm (4”)
Lifting Time:
35 seconds
115/208 or 230 VAC / 50/60 Hz / 1 Ph
