Air Compressors by BendPak

TS-580V-601

SKU# 5179105

TS-5 Air Compressor / 5 HP / 303 L (80-gal) Vertical Tank / 208-230V, 60 HZ 1-Phase


The TS-5 Elite air compressor is designed to save energy. Built for high productivity and lower operating costs, it produces more compressed air using an extremely efficient and low-energy-consuming 5 HP motor.

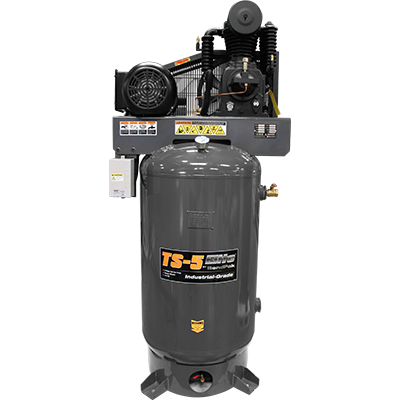

Upright Air Compressor TS-580V-601 by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

The TS-5 Air Compressor, a Tried-and-True Classic

The TS-5 is one of BendPak’s most popular air compressor models. High-quality, slow running cast iron compressor pumps deliver proven longevity in the most demanding conditions. Because they run at a slower RPM than most comparable units, they’re quieter, run cooler and cost less to operate. 100% cast iron pumps provide the quality and performance needed for heavy‐use applications like automotive and body repair to manufacturing and industrial service.

Hydraulic pump

The two-stage, twin piston pump features splash lubrication for total reliability and a finned cylinder configuration that provides 360° cooling. Heavy‐duty, disc‐type valves are dependable and accessible without having to remove the cylinder head or perform other complicated valve maintenance procedures. A built‐in inter-cooler and air‐cooled after-cooler chill the air, resulting in reduced heat and condensation moisture.

Cooling fan

The TS-5 Elite air compressor operates at low temperatures and optimises its efficiency for maximum air output. The pump runs at a lower speed, which also reduces noise in your shop or garage. When you finally decide which air compressor best fits your needs, take into account the overall lifetime maintenance costs. This is the “true cost” of owning anything. Electric bills can accumulate quickly, and more horsepower means a higher bill. That’s exactly why the TS-5 Elite is such a money-saver: it runs at a cool temperature and runs an efficient 5 HP motor that won’t cut deeply into your bottom line. Why get less when you can save more with the TS-5 Elite by Ranger?

Features

  • Extra-quiet, low-RPM pump
  • 5 HP energy‐efficient motor
  • Pressure switch ensures efficient operation at all times with no wasted energy
  • Cast‐iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminium cylinders with pressed‐in sleeves
  • Cast‐iron Elite pump features simple splash lubrication for total reliability and a finned cylinder configuration that provides 360° cooling
  • Dual drive belts require less belt tension resulting in less load on pump bearings, longer belt life and low vibration
  • Fully‐enclosed belt guard
  • ASME-rated tank
  • Large surface area and cooling fins on cylinders and forced‐air after-cooler provides efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
  • Precision honed cylinders increase efficiency and oil control
  • Oversized ductile iron crankshaft provides extra strength and longer wear
  • Tapered roller main bearings provide full contact and support of the crankshaft and needle‐type piston pin bearings properly distribute bearing loads
  • Precision balanced flywheel has forced‐air fan blades for optimum compressor cooling and life
  • Magnetic starter provides thermal overload protection and minimises start loads providing long life and trouble‐free operation
  • ASME-rated safety valve protects the compressor from over pressure and safeguards the operator
  • Balanced flywheel and counterbalanced crankshaft provides vibration‐free operation
  • Readily accessible disc‐valves do not require disassembly of compressor piping for easy accessibility and reduced maintenance cost and downtime
  • Corrosion resistant tubing for coolers, separators and valves for longer life and reduced maintenance
  • High‐density, die‐cast aluminium alloy rods minimise reciprocating weight
  • Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap
  • Automatic pressure switch provides auto start and stop
  • Integrated pressure unloader valves are built into the intake valve assembly on the compressor head, reducing internal pump heat from initial start‐up compression
  • Pressure gauge with service valve
  • Oversize replaceable air filter

TS-580V-601 Specifications

TS-580V-601 specs diagram

Motor

Horsepower:
5 HP
RPM:
1,740 RPM
Voltage:
208 - 230V
Phase:
1 Ph
Hertz:
60 Hz
Running Amps (SFA):
26-23.8A
Peak Amps:
54-48A
Recommended Breaker:
30A
Noise:
75 dB

Pump

Style:
2-Stage / 2-Piston / Vertical
Lubrication:
Splash / Oil
Material:
100% Cast Iron
Pump RPM:
625 RPM
Duty Cycle:
Continuous
CFM @ 90 PSI:
17.9 CFM
CFM @ Max PSI:
17.2 CFM
Auto Turn-On Pressure:
145 psi
Auto Shut-Off Pressure:
175 psi
Max PSI:
175 psi

Tank

Orientation:
Vertical
Size:
80 gallon
Outlet:
1/2" Fitting
Certification:
ASME

Dimensions

Width:
39
Depth:
79
Height:
26
Weight:
619

Shipping

Weight:
619 lbs. (281 kg)
Dimensions:
39" x 26" x 79" (991 mm x 660 mm x 2,006 mm)
